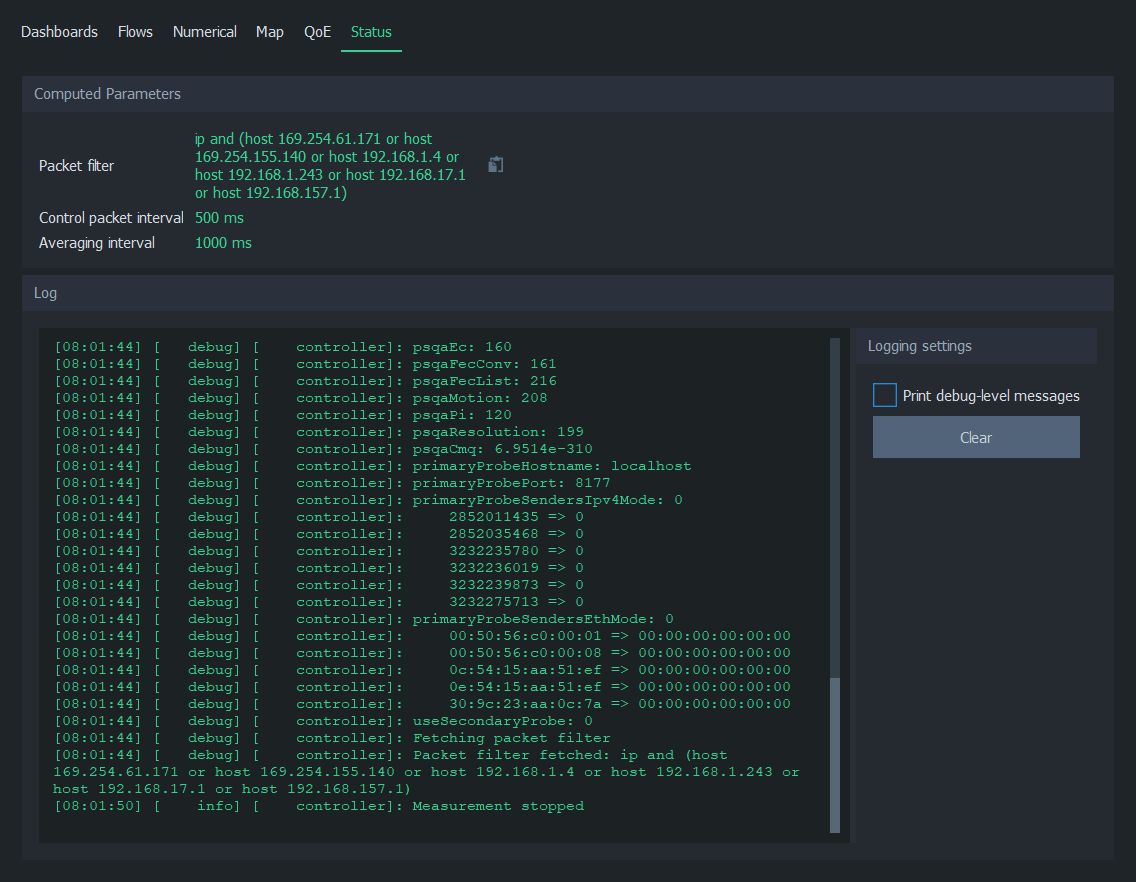

Status Tab

The status tab displays information about the current measurement and the operation of Scope.

1. Overview #

The status tab contains two groups:

  • Computed Parameters
  • Log

2. Computed Parameters #

The computed parameters group displays the values, which are automatically calculated by Qosium when a measurement is started. Depending on the measurement settings, these may be the given manual values, but they may also differ if Qosium can determine values better suited for the measurement scenario.

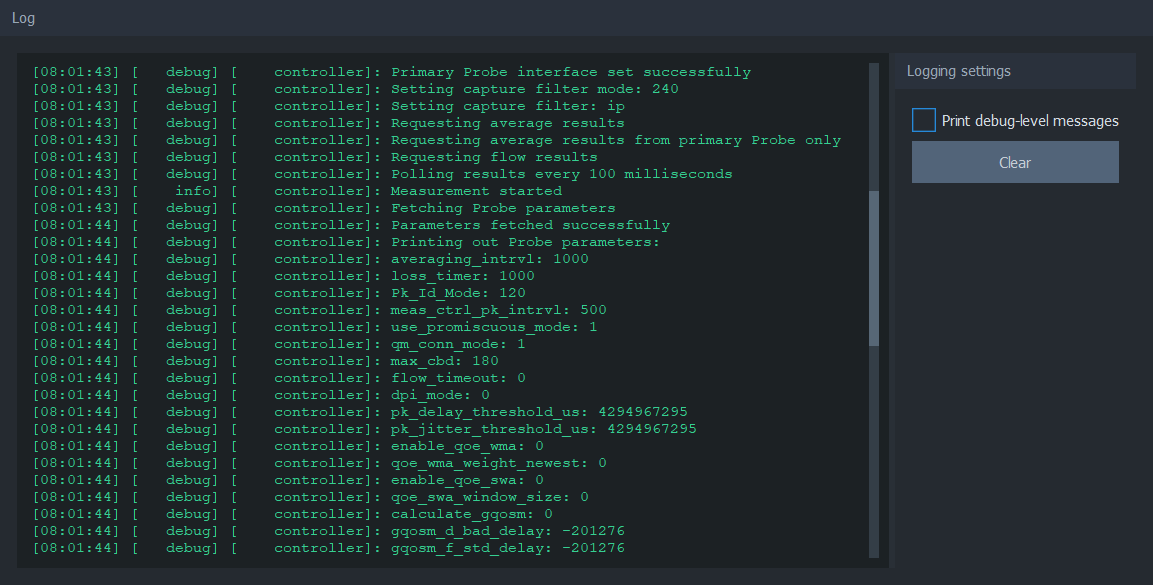

3. Log #

The log window contains information on the operation and events of Scope. Error and warning messages are also printed in the log for later review.

This group contains a few settings:

  • Print debug-level messages - When checked, debug-level messages are also included in the log, which contains more fine-grained information
  • Clear - Clear the log window
